NUX Ace of Tone Dual Overdrive Pedal

NUX Ace of Tone Dual Overdrive Pedal

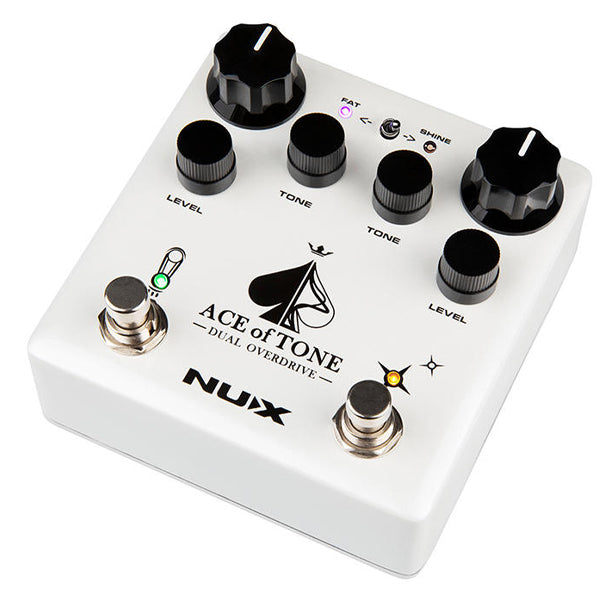

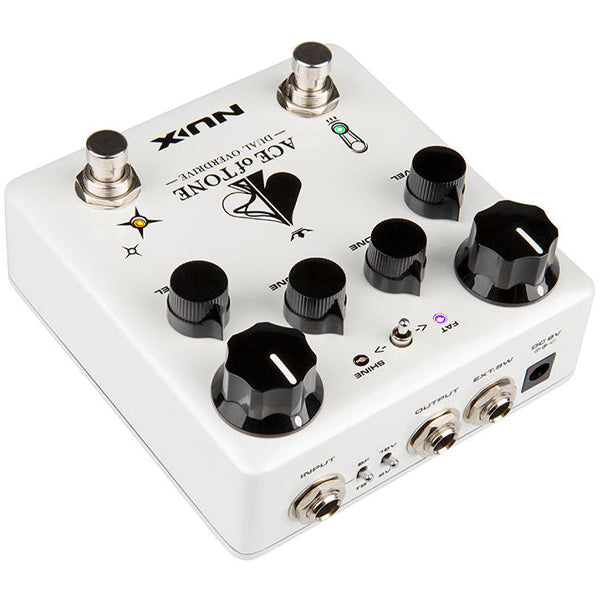

Dual Overdrive in a Stompbox.
ACE of TONE is a dual overdrive pedal stacked with Tubeman MKII and Morning Star. Why? Because great guitarists love 2 overdrives to stack their tone.

In the left corner~ Tubeman with FAT mode. Tubeman offers way more clarity and gain than any classic Tubescreamer, and we modified the circuit with a useful secondary function by simply holding the foot switch~ FAT mode. It cranks way more bass response to enhance the low-end yet makes the tone warmer!

In the right corner~ Morning Star with SHINE mode. Morning Star is based on legendary Bluesbreaker circuit: very transparent, low gain drive. Like our Morning Star, it also features a simple FOOT SWITCH HOLD to engage the iconic SHINE mode. In SHINE mode, you can get way more treble sound to make your tone crystal-clear.

Specification:

• Model : NDO-5 Ace of Tone
• Input Impedance : 2.2M Ohm
• Output Impedance : 1k Ohm
• Current Draw : <100mA
• Power Requirement : 9v DC Centre Negative Pin
• Dimensions: Length : 10.5 cm / 41⁄8” | WIdth: 11.5 cm / 41⁄2” | Height: 5.8 cm / 21⁄4”
• Weight : 440g / 15.5 oz
• Dimension Packaging Weight : 0.6 kg


Features :

• Dual overdrive pedal combining Tubeman MKII & Morning Star circuits
• FAT mode on Tubeman side for enhanced bass response and warmer tone
• SHINE mode on Morning Star side for brighter, crystal-clear highs
• Flexible routing switch: MS→TM or TM→MS signal chain
• Buffer Bypass (BF) / True Bypass (TB) toggle switch
• Internal 9V/18V voltage switch for increased headroom and dynamic range

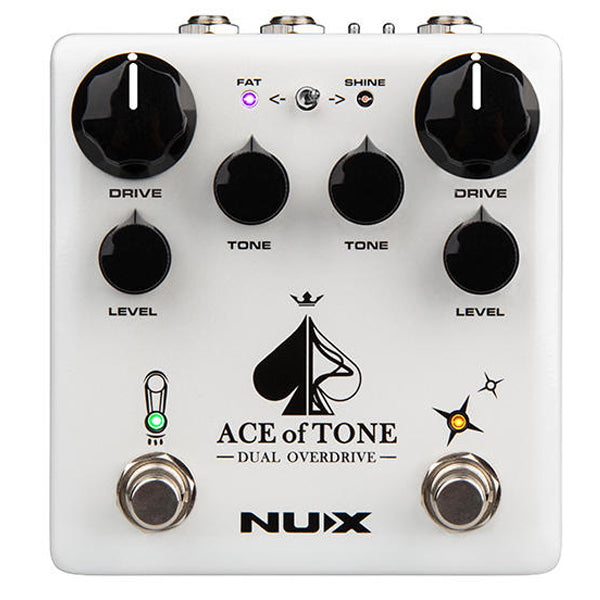

• Independent Drive, Tone & Level controls for each channel

• Footswitch hold function for activating secondary modes

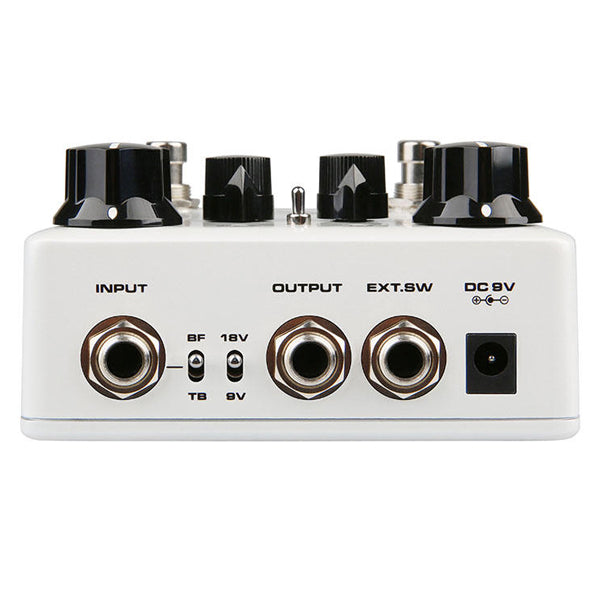

• External footswitch control support via EXT. SW input
• Compact Verdugo Series enclosure design
• Low-noise analog circuitry for smooth overdrive stacking
