NUX C-7 Wireless In-Ear Monitor System

NUX C-7 Wireless In-Ear Monitor System

The C-7 Stereo Wireless In-Ear Monitor System easily transforms your wired earphones into a wireless monitoring solution and is compatible with most in-ear monitor earphones. Operating on the 5.8GHz wireless frequency band, it delivers a more stable, low-interference wireless transmission experience. The newly added display screen provides a more intuitive view of channel selection, battery level, and system status. Featuring both Auto and Manual pairing modes, the C-7 also supports one transmitter connected to multiple receivers, making it ideal for synchronized band monitoring. Whether for daily rehearsals, live performances, streaming, or silent home practice, the C-7 delivers afreer and more convenient stereo wireless monitoring experience.

Specifications :

• Frequency Band: 5.8 GHz ISM (5.725 GHz – 5.85 GHz)
• Transmission Power: <25 mW EIRP
• Operation Range: <30 m
• Latency: 5.8 ms (with 1.0.3 firmware), 7.5 ms (with 1.0.2 firmware)
• Dynamic Range: 96 dB
• THD+Noise: <0.4% @ 1 kHz
• Input Impedance (Transmitter): 3.7 kΩ
• Maximum Input Level (Transmitter): 2.7 Vrms
• Recommended Headphone Impedance (Receiver): 16–32 Ω
• Maximum Output Power (Receiver): 57 mW RMS
• Operating Time: Approx. 6 hours
• Charging Time: Approx. 3 hours
• Battery: 3.7 V / 750 mAh (Transmitter) 3.7 V / 500 mAh (Receiver) and 3.7 V / 3000 mAh (Charging Box)
• Dimensions & Weight: Transmitter: 76 × 42.5 × 30 mm / 50 g. Receiver: 58.5 × 38 × 33 mm / 40 g

Features :

• Easily turns your in-ear monitors into a wireless system
• Compatible with audio interfaces, mixers, and personal monitor mixers for rehearsals, live performances, and streaming
• Supports stereo / mono input modes
• Supports both automatic and manual pairing modes
• One transmitter supports multiple receivers for flexible system expansion

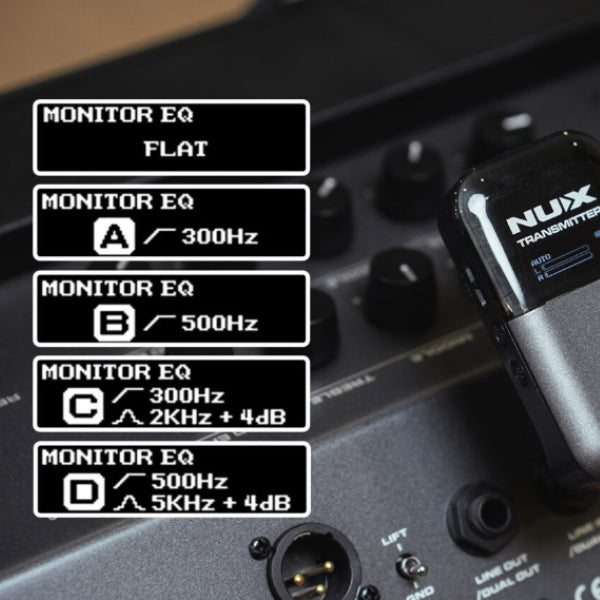

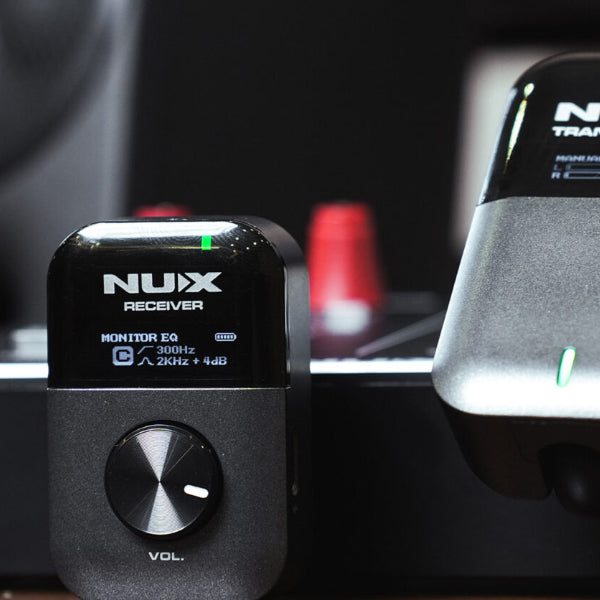

• Built-in monitoring EQ presets effectively reduce the occlusion effect, delivering a clearer and more natural monitoring experience

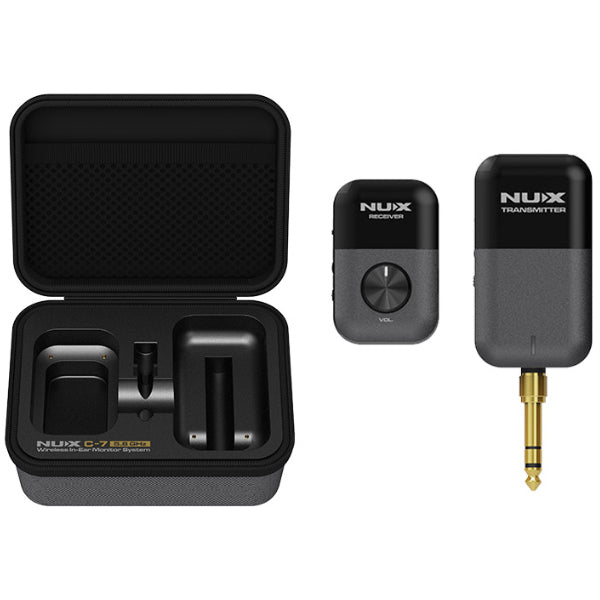

• Equipped with a 3000 mAh charging case that can recharge the transmitter and receivers approximately twice, providing over 18 hours of total runtime and keeping the system ready at all times. C-7X4 includes a carrying case
• Compact and portable design for easy carrying

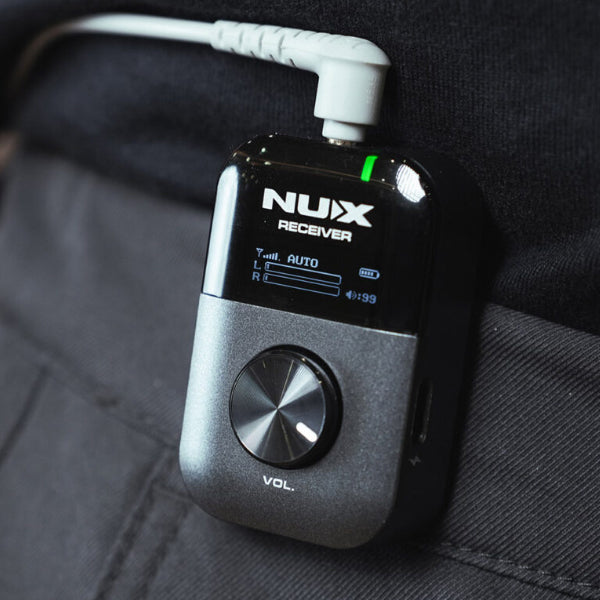

• Receiver supports three mounting options: clip, lanyard, and magnetic attachment
• One-touch frequency hopping and manual channel selection for quick access to the best wireless channel
• 5.8 GHz wireless frequency band
• Up to 6 hours of battery life per charge
• 24-bit high-resolution audio
• Ultra-low latency of 5.8 ms (with 1.0.3 firmware), 7.5 ms (with 1.0.2 firmware)
• Transmission range of up to 30 m
• 96 dB dynamic range
• Supports 16–32 Ω earphones
