NUX Edge Delay NDD-3 Electric Guitar Pedal

NUX Edge Delay NDD-3 Electric Guitar Pedal

The edge delay provides you with 3 unique delays, each including acurate control over its sonic character and feel. Clear, studio-quality digital delays. Saturated and fluctuating sounds of tape delay machines. Warm and fuzzy analog style repeats.

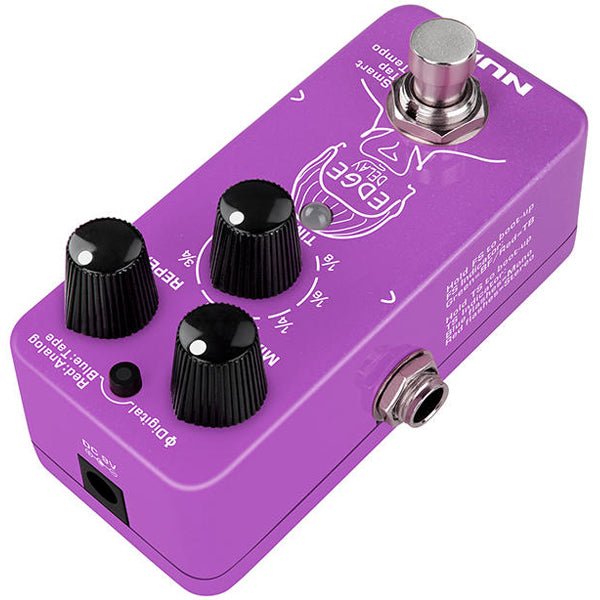

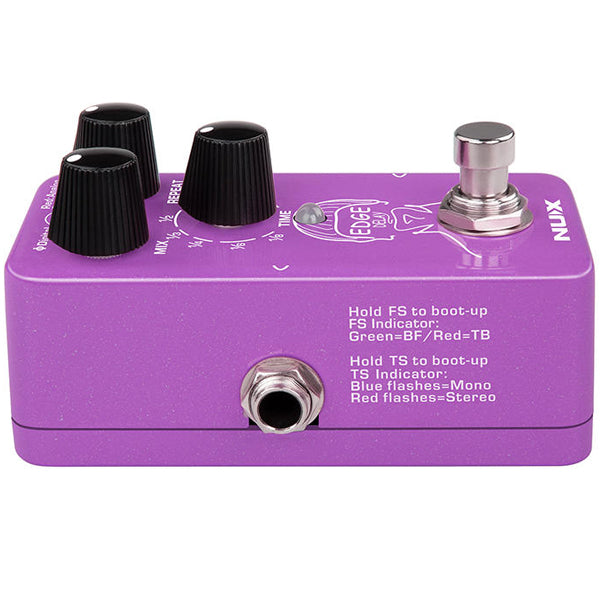

The Edge delay (NDD-3) is a mini delay pedal with 3 different delay types including ΦPhi Digital Delay, Analog Delay, and Tape Echo. You can switch delay types by pressing and holding the footswitch.

DELAY SUB-DIVISIONS WITH SMART TAP TEMPOSet the Time knob parameter to your desired sub-division, then you can engage the smart tap tempo by pressing the footswitch twice to get a dynamic sub-division tap tempo delay .

Press the footswitch once to engage/disengage the effect. Press twice, to access Smart Tap Tempo. In the meantime, the delay time is related to tap tempo and current sub-division parameter. (The FS indicator will flash as current BPM.)

Specification :

• Input Impedance: 1MΩ
• Output Impedance: 10kΩ
• Dynamic Range: 103dB
• DSP Processing: 48KHz/32-bit
• A/D D/A Sampling Rate: 48KHz/24-bit
• Power: 9V DC (Negative tip, Optional ACD-006A adapter)
• Current Draw: less than 100mA
• Dimensions: 194(L)x51(W)x53(H)mm
• Weight: 175g


Features :

• 3 delay types in a mini enclosure.
• ΦPhi Digital Delay: Musical digital delay with golden ratio 2nd repeat head.
• Analog Delay: BBD Warm sound with natural treble decay.
• Tape Echo: High-frequency saturation and low-end decay.
• Sub-division with Smart Tap Tempo. (Maximum: 1500ms)
• True-bypass or Buffer-bypass (Trails).
• Supports Stereo I/O with TRS Cable.
• Low power consumption. (less than 100mA)
• Analog dry signal for low noise and zero latency.
